Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

fire testing machine for building materials

surface burning characteristics testing equipment

flammability testing equipment with warranty

Lugar de origem:

China

Marca:

YUYANG

Certificação:

CE

Número do modelo:

YY410

Contacte-nos
Peça umas citações
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment
Detalhes do produto
Material de cobertura do telhado de madeira compensada, tamanho:
1.300 (w) × 1.000 (d) × 120 (h)
Fonte de energia:
380V 50Hz Sistema de cinco fios trifásicos
Forno de túnel de teste:
3. Comprimento 7,62m, seção transversal de extremidade aberta 0.45m * 0,3m, temperatura máxima de ti
Ângulo do queimador:
45 °
Fonte de gás:
> 95% de gás propano; （Usuário deve fornecer para si）
Pressão do gás:
10kpa~50kpa
Destacar:

fire testing machine for building materials

,

surface burning characteristics testing equipment

,

flammability testing equipment with warranty

Termos de pagamento e envio
Quantidade de ordem mínima
SET/Sets
Preço
pending
Tempo de entrega
5
Termos de pagamento
L/c, t/t
Habilidade da fonte
20
PRODUTOS CONEXOS
Bom preço. Building Materials Ignitability Flammability Tester for Single Flame Source Test on-line

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Obtenha o melhor preço
Bom preço. Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment on-line

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Obtenha o melhor preço
Bom preço. YY-121 Building Materials Difficult Flammability Test Equipment on-line

YY-121 Building Materials Difficult Flammability Test Equipment

Obtenha o melhor preço
Bom preço. Cabine de segurança biológica de classe II A2 com profundidade de 780 mm on-line Vídeo

Cabine de segurança biológica de classe II A2 com profundidade de 780 mm

Obtenha o melhor preço
Contacte-nos
86-769-26622869
Contacte agora
Descrição do produto

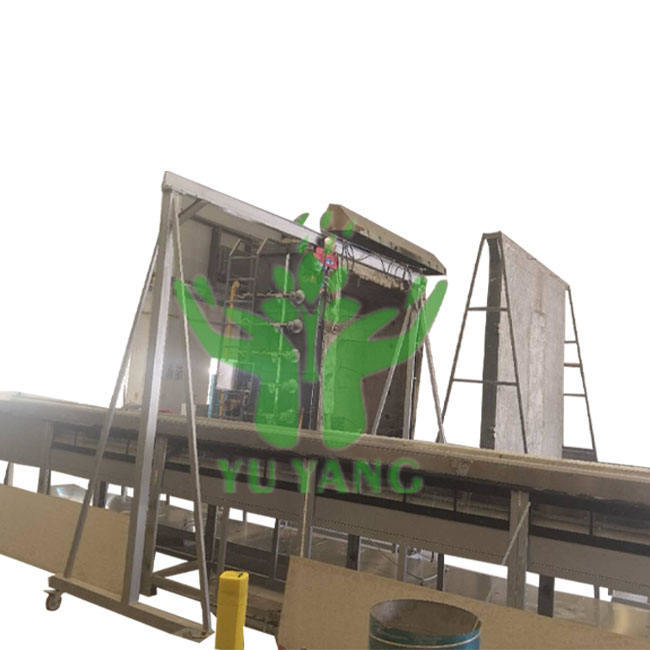

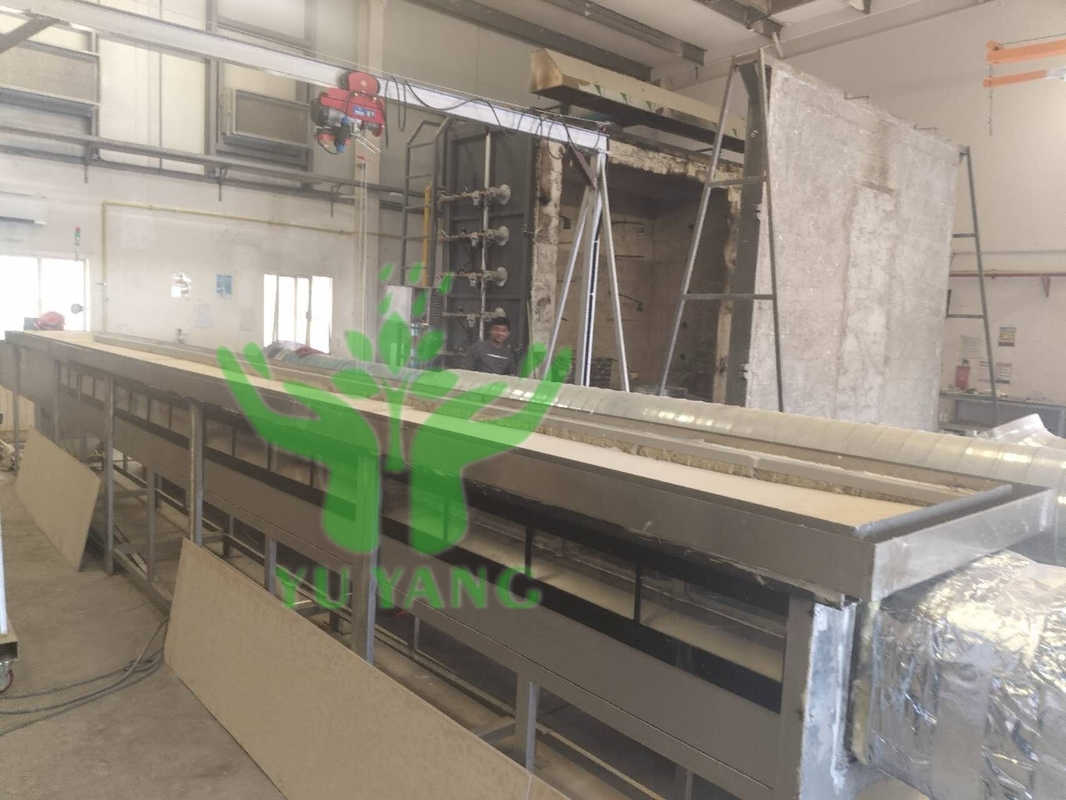

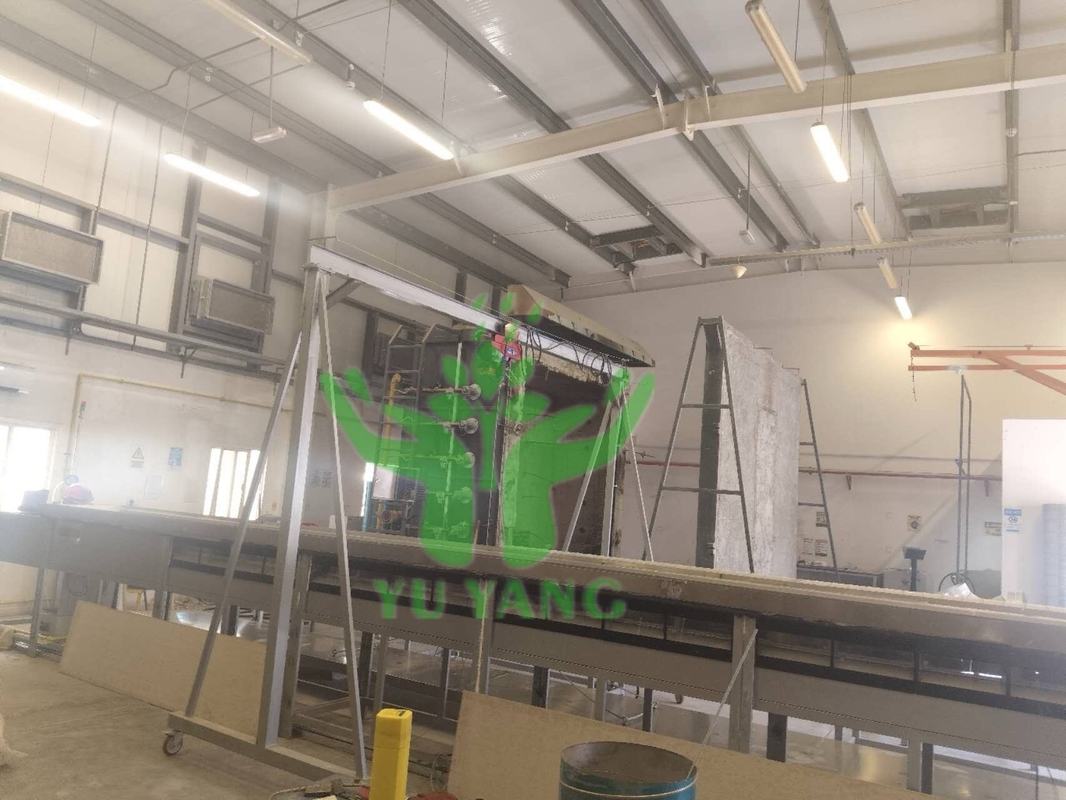

Fire Testing Machine for Building Materials
YY410 UL790 Fire Performance Tester for evaluating surface burning characteristics of building materials and photovoltaic cell modules.
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 0 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 1 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 2 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 3 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 4
Scope of Application
This equipment evaluates roofing materials exposed to simulated exterior building fires, assessing fire resistance at distances of 1.82m, 2.4m and 3.9m to Class AC. Also suitable for testing photovoltaic cell module fire resistance.
Compliance Standards
  • UL 1730 Smoke Detector Monitors
  • UL 790 Standard Test Method for Fire Testing of Roof Coverings
  • IEC 61730-2 Photovoltaic Modules Appendix A Fire Tests
  • ASTM F 108-04 Standard Test Method for Fire Tests of Roof Coverings
  • NFPA 256 Fire Tests for Roof Coverings
Performance Parameters
  • Plywood roof covering material: 1,300(W) × 1,000(D) × 120(H) mm
  • Non-combustible test plate to block tempering
  • Adjustable fan plate: 1,440(L) x 940(H) mm
  • Corrosion-resistant steel main frame: 1,020(L) x 1,000(D) x 1,473(H) mm
  • Non-combustible panel assembly: 330(W) x 2,130(D) x 584(H) mm
  • Test panel air flow rate: 19±8 km/h (5.5m/sec) with anemometer
  • Independent air duct with honeycomb filter screen
  • Stainless steel air duct: 2,130(W) x 762(H) x 5,200(L) mm
  • 380V, 50HZ three-phase power fan with reverse system (min flow 300m³/min)
  • Gas burner: 1.12m long, diameter 60.3mm with 12.7mm wide slit
  • Gas burner capacity: 22,000Btu/min (387kWh) with automatic flow adjustment
  • Automatic ignition system (minimum 1.8kVp)
  • Data acquisition system with LabView programming and NI modules
  • Industrial control computer with 21-inch monitor and test software
  • Sample ignition device adjustable to 880±10℃
  • Rotatable metal grid for material support
  • Advanced temperature and fan wind speed control systems
  • Comprehensive gas leakage and carbon monoxide safety alarms
  • Power requirements: 380V 50HZ three-phase, ≥30KW
Equipment Description
The system consists of an adjustable test platform, non-combustible panel assembly, gas burner, supply fan with air channel, isolation plate, and fire panels. Tests must be conducted in a controlled environment (10-32°C) with all openings closed to prevent external interference.
Before testing, mortar should fill gaps between roof covering material and frame to prevent air/flame passage. Airflow must be calibrated using 1m×1.3m plywood at specified inclination (127mm/300mm).
Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 5 Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment 6
