Name: PV Module Damp Heat Constant Humidity Chamber IEC 61215 61646 Programmable Environmental Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE009-100L
Price: 2000 USD
Availability: InStock

Para casa > produtos > Câmara de teste ambiental >

PV Module Damp Heat Constant Humidity Chamber IEC 61215 61646 Programmable Environmental Test

PV module damp heat test chamber

programmable humidity test chamber

IEC 61215 environmental test chamber

Lugar de origem:

China

Marca:

YUYANG

Certificação:

Número do modelo:

YYE009-100L

Contacte-nos

Peça umas citações

Detalhes do produto

Tamanho interno: WHD (mm):

500*400*500

Tamanho externo: WHD (mm):

1000*1000*1400

Faixa de temperatura:

-20ºC a +70ºC

Faixa de umidade:

10%~85% UR

Precisão/uniformidade analítica de temperatura:

0,1ºC/±2,0ºC

Flutuação de temperatura:

± 0,5ºC

Precisão de controle analítica da umidade da precisão da umidade:

±0,1%;±3%

Calor; tempo de arrefecimento:

Aquecer a cerca de 3,0°C/min; arrefecer a cerca de 1,0°C/min

Poder:

AC220V 50/60Hz e 1

peso (kg):

180kg

Tempo de aquecimento:

3℃/min (taxa média de aumento)

Tempo de resfriamento:

1℃/min (taxa média de tunelamento)

Destacar:

PV module damp heat test chamber

programmable humidity test chamber

IEC 61215 environmental test chamber

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

$2000

Detalhes da embalagem

caixa de madeira compensada

Tempo de entrega

5 a 10 dias úteis

Termos de pagamento

T/T, L/C, Western Union

Habilidade da fonte

200 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Food Fermentation Constant Temperature Humidity Chamber Programmable Environmental Quality Test

Obtenha o melhor preço

Vídeo

Seed Germination Constant Temperature Humidity Chamber Plant Growth Simulation LED Light Optional

Obtenha o melhor preço

Vídeo

Medical Device Cosmetic Stability Temperature Humidity Chamber GMP Environmental CE Certified

Obtenha o melhor preço

Vídeo

Custom OEM ODM Constant Temperature Humidity Test Chamber Climatic Environmental Manufacturer

Obtenha o melhor preço

Contacte-nos

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

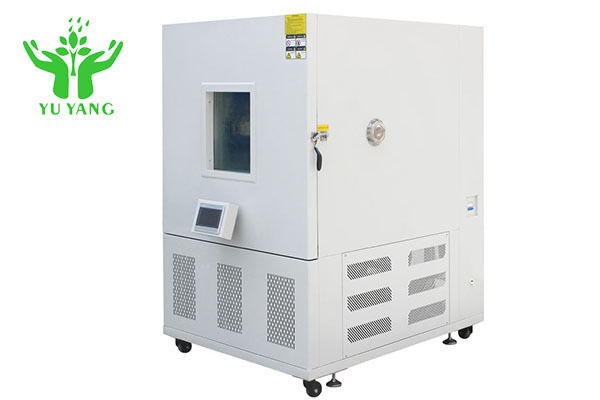

PV Module Damp Heat Constant Humidity Chamber

IEC 61215 61646 Programmable Environmental Test Chamber for comprehensive environmental testing of photovoltaic modules and electronic components.

Application

This environmental test chamber evaluates material resistance to heat, cold, dry conditions, and humidity. Suitable for testing electronics, electrical appliances, communications equipment, instrumentation, automotive components, plastic products, metals, food products, chemicals, building materials, aerospace components, and various industrial products.

Features

Precise and durable conditioning system with quick and constant environmental conditions
Humidity range: 5% to 98% R.H. ±0.5%
Temperature range: -20°C to 150°C ±0.5°C
Comprehensive testing capabilities for heat, cold, dry, and humidity resistance
Ideal for conditioning various samples prior to testing
Widely used in electronics, electrical equipment, automotive, metal, food, chemical, building materials, and packaging industries

Technical Parameters

Parameter	Specification
Model	YYE009-100L
Inner Size (W×H×D)	500×400×500 mm
External Size (W×H×D)	1000×1000×1400 mm
Temperature Range	-20ºC to +70ºC
Humidity Range	10%~85% R.H.
Temperature Analytic Accuracy/Uniformity	0.1ºC/±2.0ºC
Temperature Fluctuation	±0.5ºC
Humidity Analytic Accuracy/Control Accuracy	±0.1%;±3%
Heating Rate	3.0°C/min (average)
Cooling Rate	1.0°C/min (average)
Power Supply	AC220V 50/60Hz
Weight	180 kg

Compliance Standards

GB/T2423.1-2008, GB/T2423.2-2008, GB/T2423.3-2006, GB/T2423.4-2008, GB10589-2008, GB11158-2008, GB10586-2006, GJB150.3-1986, GJB150.4-1986, GJB150.9-1986
