Induction Heating Welding Machines Induction Heating Machine

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

Lugar de origem:

China

Marca:

YUYANG

Certificação:

CE

Número do modelo:

O número de unidades de produção

Contacte-nos
Peça umas citações
Induction Heating Welding Machines Induction Heating Machine
Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine
Detalhes do produto
Poder de flutuação máxima:
40 kW
Poder de trabalho:
340V-430V
Corrente máxima de entrada:
41A
Potência de saída:
40 kW
Frequência flutuante:
30-80 kHz
A vazão da água de resfriamento:
0.08-0.16Mpa 7,6L/min
ponto de proteção de temperatura da água:
40c
Tamanho do produto:
620x250x530mm
Peso líquido:
34,5kg
Destacar:

induction heating welding machine

,

electrical test set with induction heating

,

welding machine with induction heating

Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
$2000
Detalhes da embalagem
caixa de madeira compensada
Tempo de entrega
5 a 10 dias úteis
Termos de pagamento
T/T, L/C, Western Union
Habilidade da fonte
200 conjuntos por mês
PRODUTOS CONEXOS
Bom preço. High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery on-line Vídeo

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Obtenha o melhor preço
Bom preço. Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v on-line Vídeo

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Obtenha o melhor preço
Bom preço. 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine on-line Vídeo

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Obtenha o melhor preço
Bom preço. 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery on-line Vídeo

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Obtenha o melhor preço
Contacte-nos
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contacte agora
Descrição do produto

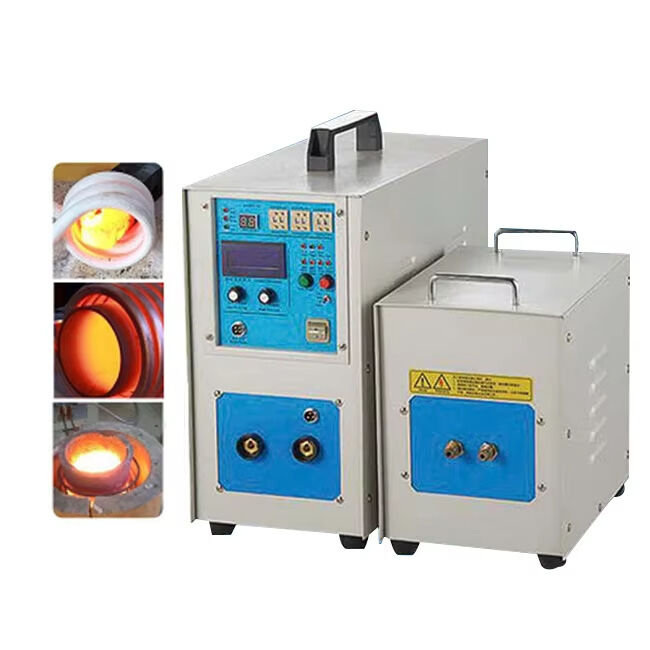

Induction Heating Welding Machines
Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to traditional heating methods
  • Secure voltage operation for enhanced safety
  • Manual and automatic regulation with comprehensive protection systems
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Versatile applications including brazing, welding, forging, and heat treatment
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Advanced amorphous magnetic core technology for superior heating of complex metal shapes
  • High efficiency with rapid 8-second heating cycles and stable magnetic field output
  • Monolithic shell design resistant to weak acids and alkalis
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-40AB (Three Phase)
Work Power 340V-430V
Maximum Input Current 41A
Output Power 40KW
Fluctuating Frequency 30-80KHZ
Cooling Water Flow 0.08-0.16Mpa 7.6L/Min
Overheat Protection 40°C
Main Unit Dimensions 620×250×530mm
Transformer Dimensions 480×260×410mm
Main Unit Net Weight 34.5kg
Transformer Net Weight 31.5kg
Applications
  • Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and blade welding, saw-tooth welding
  • Jewelry and watch manufacturing
  • Electronic industry: motor rotor hot-cooperation, electrode soldering
  • Medical implants, bulb electrode manufacturing
  • Sports equipment: golf heads, band accessories
  • Communication equipment: copper coaxial cable connector soldering
