Name: Handheld Induction Heating Machine 220V Steel Motor Bolt Forging PLC Core Components Stainless Steel Induction Heating Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYH-10A
Price: 2000 USD
Availability: InStock

Para casa > produtos > Grupo bonde do teste >

Handheld Induction Heating Machine 220V Steel Motor Bolt Forging PLC Core Components Stainless Steel Induction Heating Equipment

handheld induction heating machine 220V

steel motor bolt forging equipment

PLC core components heating tool

Lugar de origem:

China

Marca:

YUYANG

Certificação:

Número do modelo:

YYH-10A

Contacte-nos

Peça umas citações

Detalhes do produto

Poder de flutuação máxima:

10KW

Poder de trabalho:

340V-430V

Corrente máxima de entrada:

15A

Potência de saída:

10KW

Frequência flutuante:

100-500 kHz

A vazão da água de resfriamento:

0,2Mpa, 5 L/min

ponto de proteção de temperatura da água:

40c

Tamanho do produto:

570X260X500MM

Peso líquido :

29KG

Destacar:

handheld induction heating machine 220V

steel motor bolt forging equipment

PLC core components heating tool

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

$2000

Detalhes da embalagem

caixa de madeira compensada

Tempo de entrega

5 a 10 dias úteis

Termos de pagamento

T/T, L/C, Western Union

Habilidade da fonte

200 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Obtenha o melhor preço

Vídeo

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Obtenha o melhor preço

Vídeo

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Obtenha o melhor preço

Vídeo

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Obtenha o melhor preço

Contacte-nos

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

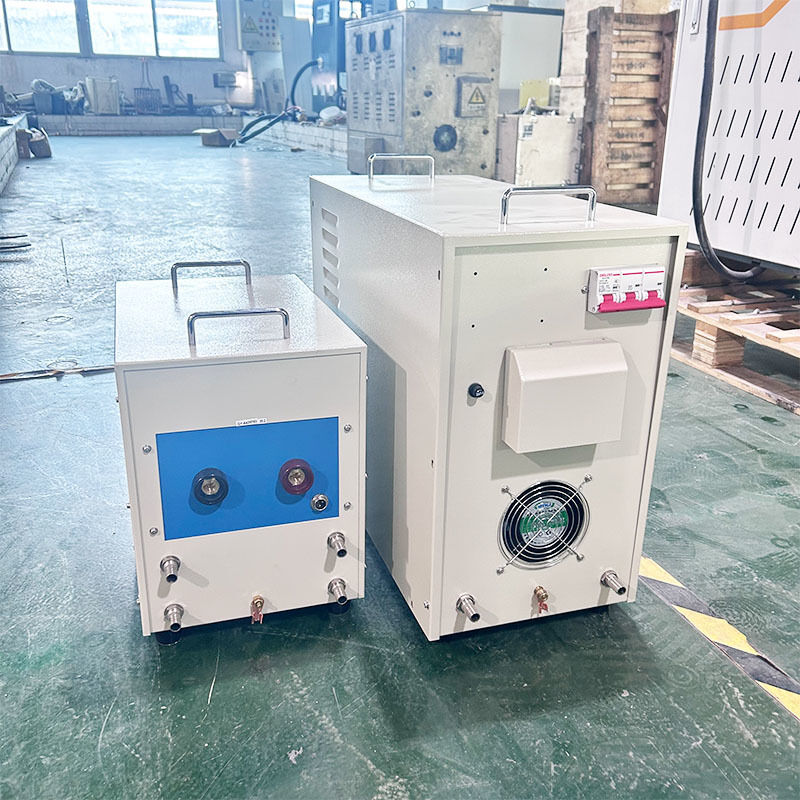

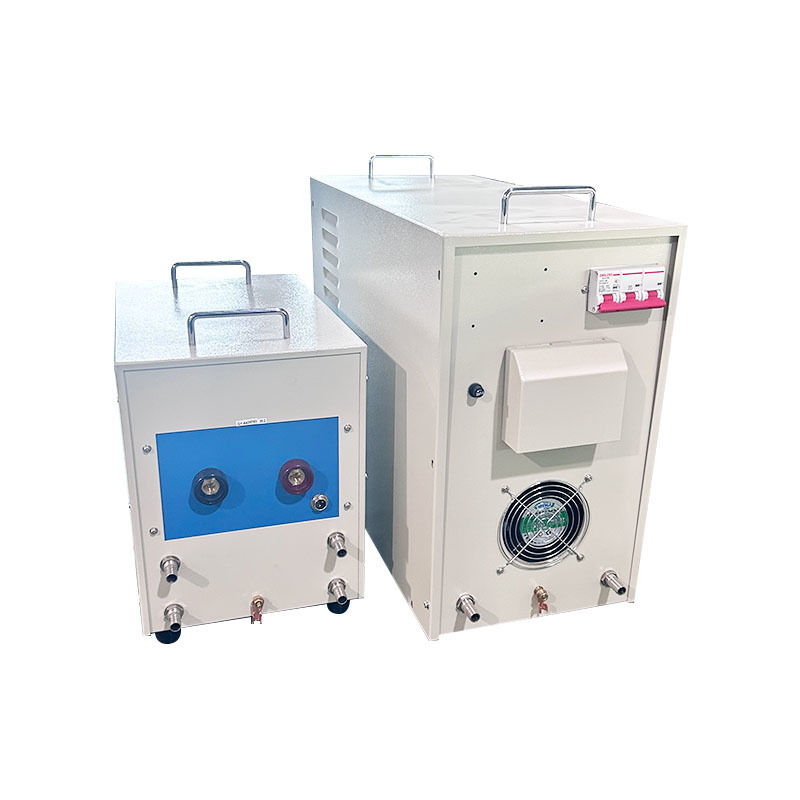

Handheld Induction Heating Machine

220V Steel Motor Bolt Forging PLC Core Components Stainless Steel Induction Heating Equipment

Product Characteristics

Adopting IGBT inverting device with automatic frequency tracking
High frequency for rapid heating with only 20%-30% power consumption compared to electronic tube induction heating
Secure voltage operation with enhanced safety and reliability
Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
No open-fire, noise, or pollution - environmentally friendly and fire-safe
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing

Advanced Features

Utilizes advanced electric components and unique high-new techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals until fusion without direct contact, solving technical problems safely and economically without pollution.

Key Advantages

Portable design: 80% space saving and 75% weight reduction compared to traditional transformers
Monolithic shell design with resistance to weak acids and alkalis
Complex metallic heating with amorphous magnetic core material for wider frequency range
Efficient heating of complex, irregular shaped workpieces
Intelligent operation with 8-second heating speed
Stable magnetic field output for consistent long-term heating performance

Technical Parameters

Model / 型号	YYH-10A (Three phase)
Work Power / 电压	340v-430v
Maximum Input Current / 最大输入电流	15A
Output Power / 最大输出功率	10kw
Fluctuating Frequency / 震荡频率	100-500KHZ
Cooling Water Flow / 冷却水流	0.2Mpa, 5 L/min
Water Temperature Protection / 过热保护	40°C
Product Size / 尺寸	570 X 260 X 500MM
Net Weight / 净重	29kg

Applications

Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: motor rotor hot-cooperate, electrode silver and tin soldering
Metal implants, bulbs fight electrode
Band accessory soldering, golf head, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Company Information & Services

About Our Company

Based in Guangdong, China since 2018, serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%).

Quality Assurance

Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.

Product Range

Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines

Why Choose Us

High-tech enterprise specializing in developing and manufacturing fire testing equipment, building material fire testers, wire and cable fire testers, and comprehensive testing solutions.

Services Provided

Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
