Name: Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-300AB
Price: 313,500.00 USD
Availability: InStock

Para casa > produtos > Grupo bonde do teste >

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

300kw induction heating sealing machine

touchscreen shaft quenching machine

LGBT automatic sealing equipment

Lugar de origem:

China

Marca:

YUYANG

Certificação:

CE, ISO

Número do modelo:

YYSQ-TC-300AB

Contacte-nos

Peça umas citações

Detalhes do produto

Saídas de potência avaliados:

300 kW

Frequência tocada:

5-20KHz

Entrada atual:

450A

Tamanho do produto:

principal: 700*940*1690MM; transformador: 1200*420*770MM

Peso líquido:

principal: 215kg; transformador: 198kg

Peso bruto:

50c

CICLO DE TRABALHO:

100%

Marca:

YUYANG

A vazão da água de resfriamento::

0,08-0,16Mpa 12L/min

Poder de trabalho:

340V-430V

Destacar:

300kw induction heating sealing machine

touchscreen shaft quenching machine

LGBT automatic sealing equipment

Termos de pagamento e envio

Quantidade de ordem mínima

SET/Sets

Preço

US $ 613000-14000

Detalhes da embalagem

1160 x 1040 x 1320mm

Tempo de entrega

5-15 dias

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte

100 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

Obtenha o melhor preço

Vídeo

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Obtenha o melhor preço

Vídeo

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

Obtenha o melhor preço

Vídeo

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

Obtenha o melhor preço

Contacte-nos

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

Touchscreen Frequency Induction Heating 300kw IGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Product Overview

This equipment adopts IGBT inverter circuit in parallel connection, providing high load adaptability. It features high power, fast heating speed, high efficiency, and easy operation. The comprehensive full load design supports 24-hour continuous operation.

Compared to other heating methods, this machine significantly improves economic benefits, enhances workpiece quality, saves energy and materials, reduces labor intensity, and improves the production environment.

Applications

Heating Applications

Hot forging for shaping workpieces using punch press and forging machines
Hot fitting for metal connections and composite materials
Smelting for melting metals into liquid form

Heat Treatment (Surface Quench)

Quenching for tools, automotive parts, electric tools, and machine tools
Quench for various hardware metal parts and machined parts (shaft, gear, cam, chuck, clamp)
Quench for hardware molds, small-size molds, mold accessories and inner holes
Hardening of mechanical parts, gears, shafts, and mold components

Welding Applications

Braze welding, silver soldering & brazing
Welding of cutting tools, mechanical gadgets, and composite materials
Specialized applications for pot bottom welding and heating elements

Annealing Processes

Annealing of various stainless steel products
Tempering and modulation processes

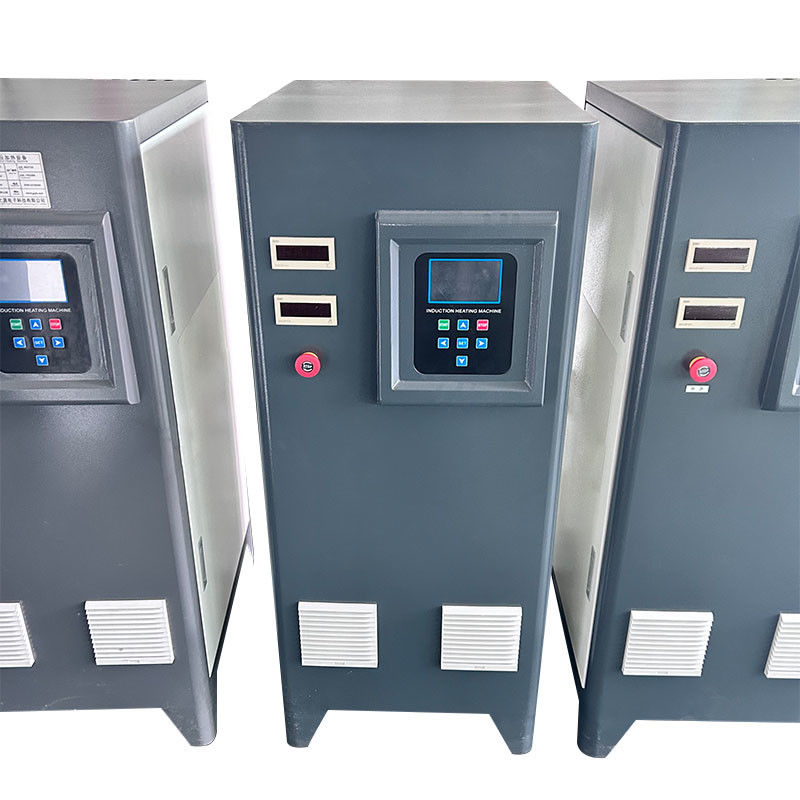

Machine Images

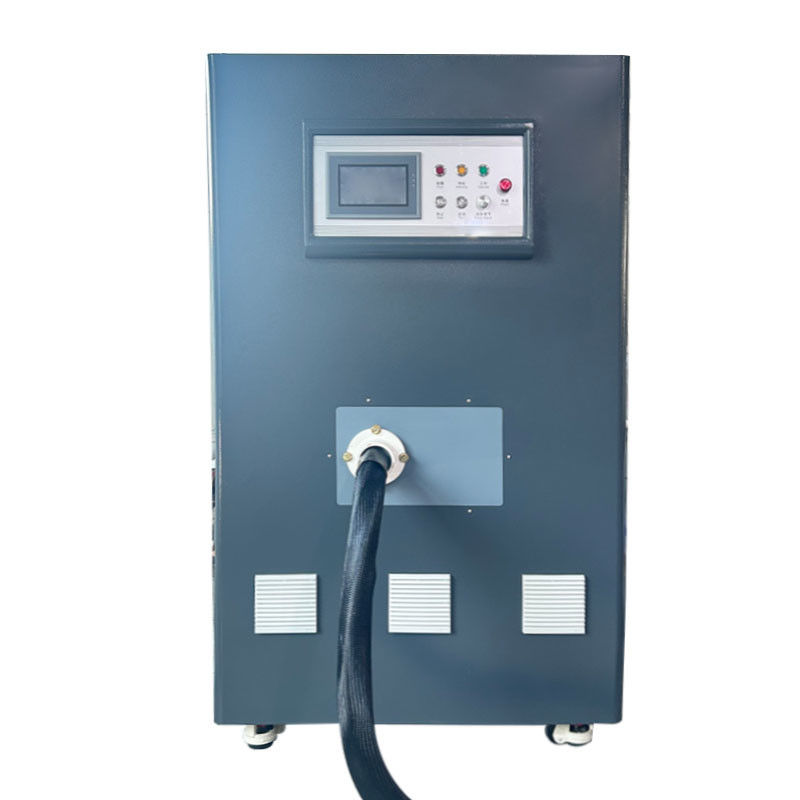

Front View

Internal Components

Cooling System

Machine Features

Advanced Power Technology

Uses imported high-quality IGBT solid power module with advanced frequency conversion technology

Continuous Operation

Advanced cooling system enables 24-hour continuous operation at maximum power

Efficient Control

Constant current and power control function for improved heating efficiency and energy savings

Easy Installation

Simple installation - operates after connecting to 380V power and water connections

Programmable Operation

Programmable timing function with adjustable heating time, heat-preservation time, and current settings

Comprehensive Protection

Comprehensive self-diagnosis system with multi-level protection against overvoltage, overcurrent, overheating, and phase loss
