Name: 15 KW Whole Oven High Frequency Heating Element Induction Portable Heater Pad Silicone Rubber Heater
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Atividades de transporte
Price: 810.00 USD
Availability: InStock

Para casa > produtos > Grupo bonde do teste >

15 KW Whole Oven High Frequency Heating Element Induction Portable Heater Pad Silicone Rubber Heater

15 KW induction heater pad

high frequency silicone rubber heater

portable oven heating element

Lugar de origem:

China

Marca:

YUYANG

Certificação:

ISO, CE

Número do modelo:

Atividades de transporte

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Máquina de aquecimento por indução

Indústrias Aplicáveis:

Lojas do material de construção, oficinas de reparações da maquinaria, usina, obras, energia & miner

Código HS:

8514.40.0000

Potência de trabalho Temperatura:

180V-250V

Serviço pós-venda fornecido:

Serviço pós-venda ao longo da vida

frequência flutuante:

30-100kHz

Corrente de saída:

200-600A

Peso (KG):

principal: 18kg; transformador: 15kg

Garantia:

1 ano

A vazão da água de resfriamento:

0.06-0.12Mpa 7,5 L/min

Destacar:

15 KW induction heater pad

high frequency silicone rubber heater

portable oven heating element

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

760-860

Detalhes da embalagem

CAIXA DE MADEIRA

Tempo de entrega

5-15 dias

Termos de pagamento

T/T, L/C

Habilidade da fonte

200 unidades por mês

PRODUTOS CONEXOS

Vídeo

60 KW Induction Heating Machine 380v Industrial Multi-Purpose Induction Heater Induction Sealing Machine

Obtenha o melhor preço

Vídeo

70kw Induction Heating Machine Handle Industrial Multi-Purpose Heater High Frequency Heating Machine

Obtenha o melhor preço

Vídeo

40 KW Small Electric Induction Round Bottle Jar Aluminum Foil Automatic Bottle Jar Sealing Machine Induction Heating Brazing

Obtenha o melhor preço

Vídeo

15 KW Whole Oven High Frequency Heating Element Induction Portable Heater Pad Silicone Rubber Heater

Obtenha o melhor preço

Contacte-nos

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

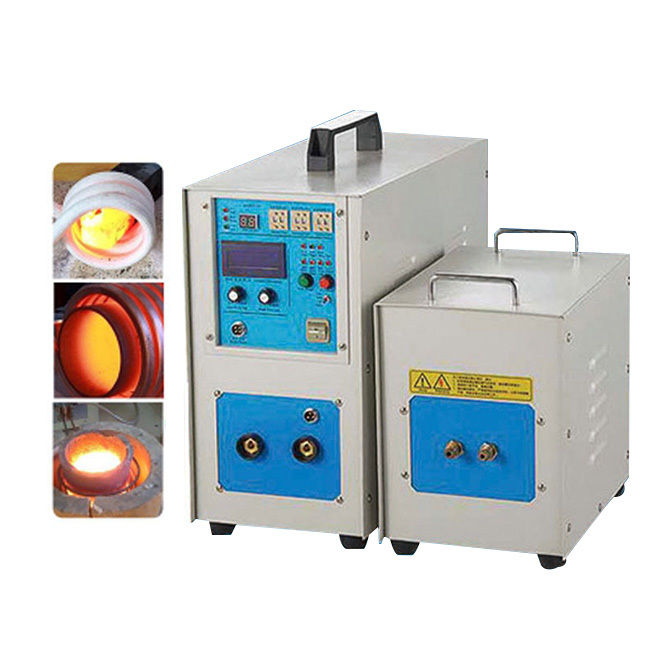

15 KW Whole Oven High Frequency Heating Element Induction Portable Heater Pad Silicone Rubber Heater

Introduction

High frequency induction heating applies alternating current to a coiled conductor (typically copper tube) to generate magnetic flux. When metal is placed in this area, the flux passes through it, creating eddy currents that generate heat through resistance. This contactless heating method concentrates heat precisely where needed for instant effects, improving production output and work capacity.

Compared to other heating methods, induction heating offers significant economic benefits, improved workpiece quality, energy and material savings, reduced labor intensity, and better production environments.

Compact size saves production space by 10 times
Safe operation without high-voltage equipment requirements
Full load design for 24-hour continuous operation

Product Description

Used for melting steel, stainless steel, brass, copper, gold, and other metals
Magnetic stirring effect improves casting quality by removing flux and oxides
Wide frequency range (1KHz to 20KHz) with customizable working frequency
Energy savings of at least 20% compared to SCR medium frequency furnaces
Compact and lightweight with multiple modes for different metal quantities
Suitable for factories, colleges, and research facilities
24-hour continuous melting capability
Easy furnace replacement for different capacities and materials

Specifications

Model	YY-15AB
Input Current	35A
Work Power	180V-250V
Output Power	15KVA
Frequency	30-100KHz
Output Current	200-600A
Cooling Water Flow	0.06-0.12Mpa 7.5L/Min
Net Weight	Main: 18kg; Transformer: 15kg
Dimensions	Main: 530×225×450mm; Transformer: 370×210×370mm
Water Temperature Protection	40°C

Applications

Brazing, Welding, Soldering

Fusion process using magnetic induction heating to reach metal melting points for material joining with or without welding materials.

Melting (High Power)

For melting and heat preservation of cast iron, alloy steel, stainless steel, gold, silver, copper, brass, bronze, aluminum, zinc, and other magnetic/non-magnetic materials.

Forging Molding

Heating bars and rods (steel, stainless steel, copper, brass, aluminum) for whole rod, end, or middle part heating applications including fasteners, tools, automotive parts, pipe fittings, and hardware accessories.

Important Notes

110V models available for customization
Direct wiring required (power line cross-section larger than 6mm²)
Industrial water chillers available for JL-15 induction heaters
Custom heating coils designed for specific workpiece requirements

Contact Information

For detailed information, customized requirements, or quotations, please contact us directly. We provide comprehensive technical support and customized solutions for your specific applications.

About DONGGUAN YUYANG INSTRUMENT CO., LTD

Located in Wanjiang District, Dongguan City, Guangdong Province, China - a historical town with prosperous industry and convenient transportation. With decades of research and development experience, YUYANG maintains leading expertise in high-quality, cost-effective testing equipment used across scientific institutions, colleges, inspection agencies, automotive, electronics, electrical, lithium battery, aerospace, and various industrial sectors.
