IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Lugar de origem:

Cantão, China

Marca:

YUYANG

Certificação:

Contacte-nos

Peça umas citações

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

Detalhes do produto

Precisão:

±1%

Poder:

500W

Classe de Proteção:

ip55

Tensão:

110V, 220V

Tamanho da câmara de controlo:

400 (W)*400 (D)*240 (H) milímetro

Tamanho do dispositivo de teste:

1500(L)*450(P)*400(A)mm

Temperatura ambiente:

10°C a 35°C

Temporizador:

Dispositivo da medida do tempo do IEC 60754-1 ou do IEC 60754-2

Peso:

80 kg

Fonte de energia:

AC220V 50HZ, 25A

Faixa de condutividade:

0,01us/mm ~ 100us/mm

Tamanho da câmara de amostragem:

1 litro

Comprimento do forno tubular:

500 ~ 600mm

Diâmetro do forno tubular:

40 ~ 60 mm

tamanho do barco de combustão:

comprimento 45 ~ 100 mm, largura 12 ~ 30 mm, profundidade 5 ~ 10 mm

Destacar:

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

PRODUTOS CONEXOS

BS 476 Part 7 Building Material Surface Flame Spread Test Apparatus Electronic

Obtenha o melhor preço

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Obtenha o melhor preço

ISO 834 BS 476 Part 20&22 Building Materials and Structures Vertical Fire Resistance Test Furnace

Obtenha o melhor preço

Cone Calorimeter Heat Release Rate Flammability Testing Equipment Electronic Machine Tester

Obtenha o melhor preço

Contacte-nos

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

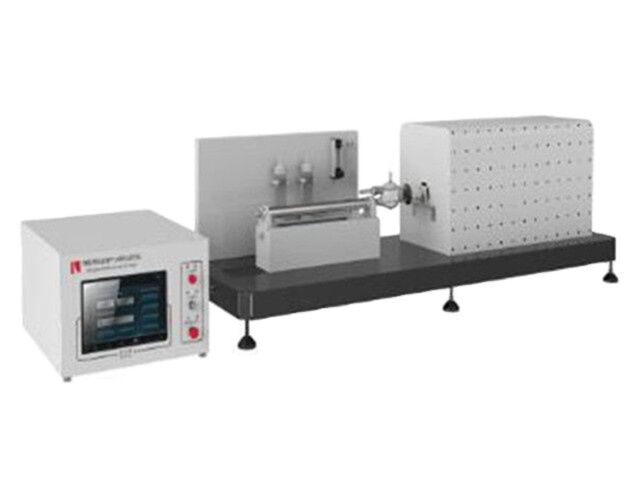

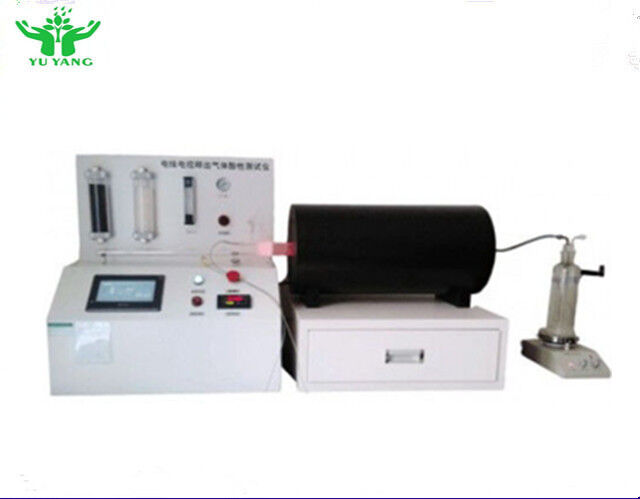

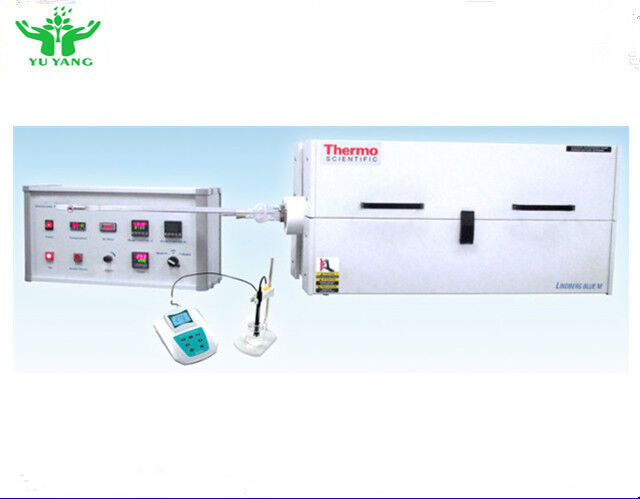

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

The Halogen Acid Gas Tube Furnace is designed to test the acidity of gases released during combustion from cable or optical cable component materials. This equipment determines the acidic properties of cable materials and measures halogen acid gas concentration, pH values, and conductivity levels.

Compliance Standards

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007

Key Features

Optimized stainless steel construction with logical layout for easy operation
Tube furnace with 500-600mm effective length and 40-60mm inner diameter
Equipped with imported US thermocouple for precise temperature measurement
Combustion boat dimensions: 45-100mm length, 12-30mm width, 5-10mm depth
Conductivity measuring range: 0.01μS/mm to 100μS/mm
Electronic temperature control system with intelligent furnace temperature management
Dual gas collection bottles and 1-liter sample chamber

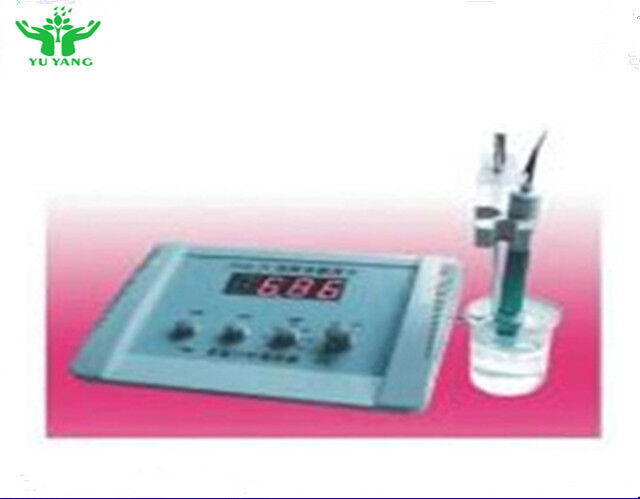

Integrated pH value and conductivity detector with electronic display
Corrosion-resistant silicon dioxide fire pipeline with air flow meter
Air filtration through activated carbon and silicone drying system
Pyrex pipeline for easy sample insertion and damage protection
Automatic combustion boat movement for intelligent testing
Dual test mode selection (IEC 60754-1 & IEC 60754-2)
Temperature alarm system to prevent overheating
Integrated timer for precise test duration measurement
Storage drawer for conductivity meters, pH meters, and accessories
Real-time furnace core temperature indicator
Permanent magnetic stirrer for gas distribution in distilled water

Technical Specifications

Timer	IEC 60754-1 or IEC 60754-2 time measurement device
Test Device Dimensions	1500(W) × 450(D) × 400(H) mm
Control Chamber Dimensions	400(W) × 400(D) × 240(H) mm
Power Supply	AC220V 50HZ, 25A
Sample Chamber Capacity	1 Liter
Weight	80KG
