Name: ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF008
Price: 25,000.00 USD
Availability: InStock

Para casa > produtos > Equipamento de teste da inflamabilidade >

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Lugar de origem:

Cantão, China

Marca:

YUYANG

Certificação:

Número do modelo:

YYF008

Contacte-nos

Peça umas citações

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

Detalhes do produto

Intervalo de fluxo de calor:

0-15 kW/m2

Precisão do fluxo de calor:

±0,2Kw/m2

Velocidade do escape:

2,5±0,2 m/s

Altura da chama:

60-120mm ajustável

Sistema de ignição:

Eletrônico de alta tensão

Taxa de fluxo de gás:

0,026±0,002 L/S

Potência Total:

2KW

Fonte de energia:

AC 220V, 50Hz

Fluxo de energia radiante:

1,1-10,9 kW/m2

Gama de medidores de fluxo de calor:

0-50 kW/m2

Emissividade da superfície:

ε=0,95±0,05

Tensão operacional:

230 V, 10 A

Temperatura operacional:

10°C a 35°C

Ângulo do painel radiante:

30º

Fornecimento de gás:

Compressores de propano e de ar

Destacar:

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Termos de pagamento e envio

Quantidade de ordem mínima

PRODUTOS CONEXOS

Aparelho Eletrônico para Teste de Propagação de Chama em Superfície de Materiais de Construção BS 476 Parte 7

Obtenha o melhor preço

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Obtenha o melhor preço

Forno de Resistência ao Fogo Vertical para Materiais de Construção e Estruturas ISO 834 BS 476 Parte 20 e 22

Obtenha o melhor preço

Calorímetro cônico Equipamento de ensaio de inflamabilidade Teste de máquina electrónica

Obtenha o melhor preço

Contacte-nos

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus

This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.

Product Overview

The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.

This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.

Compliance Standards

• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy

Key Features

Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
Stainless steel sample support assembly on sliding platform for safe and easy sample loading
Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
Dummy calibration specimen with holder and calibrated heat flux meter
Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
Integrated smoke measuring system according to DIN 50055
Control rack for convenient observation and operation during setup and calibration
Automatic ignition of radiant panel with safety cut-out
Automatic moving T-type ignition burner
Stainless steel hood with smoke measurement ports

Installation Requirements

Parameter	Specification
Electrical	230 volts Nominal, 10 Amps
Ambient Temperature	Operating range: 10°C to 35°C
Gas Supplies	Propane and air compressor

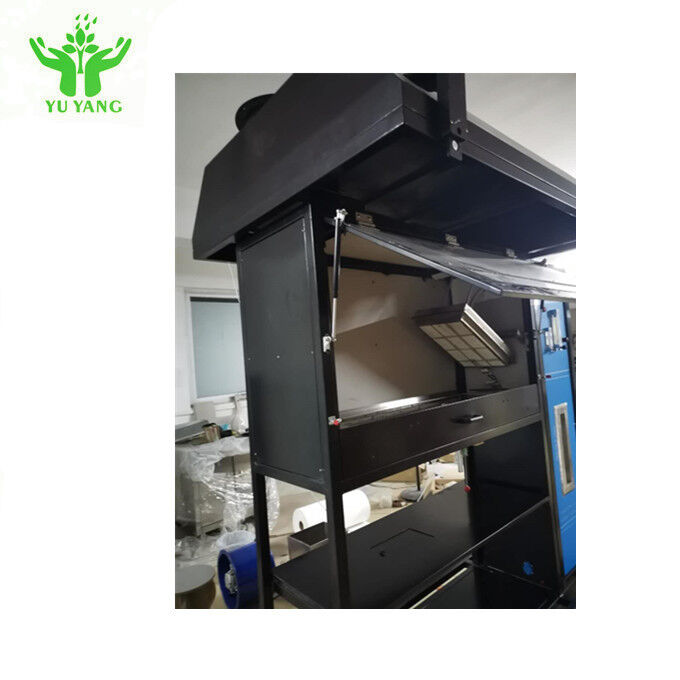

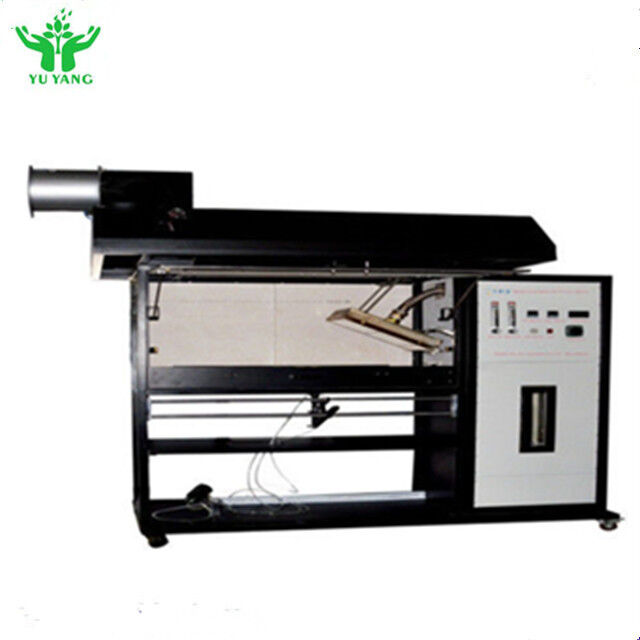

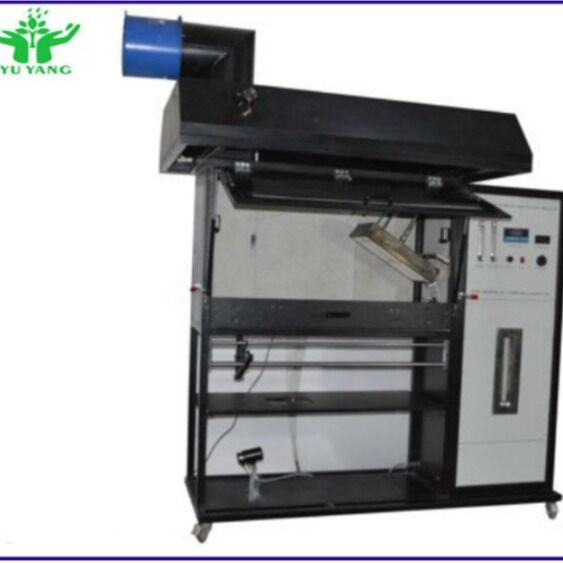

Product Images

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China - a region known for its prosperous industry and convenient transportation.

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related instruments.

Decades of research and development have established YUYANG as a leader in high-quality, cost-effective testing equipment. Our products are widely used across multiple industries including scientific institutions, colleges, inspection agencies, automotive, electronics, electrical, lithium battery, LED, photoelectric, mobile devices, plastics, rubber, display technology, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, and textiles.

All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.

DONGGUAN YUYANG INSTRUMENT CO., LTD looks forward to cooperating with customers worldwide and welcomes inquiries about our products or custom orders.
