Name: IEC 60754 Halogen Acid Gas Tester for Electric Cables Laboratory Release Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF016
Price: 4500 USD
Availability: InStock

Para casa > produtos > equipamento de teste do fio >

IEC 60754 Halogen Acid Gas Tester for Electric Cables Laboratory Release Test Apparatus

IEC 60754 halogen gas tester

electric cable release test apparatus

laboratory wire testing equipment

Lugar de origem:

China

Marca:

YUYANG

Certificação:

Número do modelo:

YYF016

Contacte-nos

Peça umas citações

IEC 60754 Halogen Acid Gas Tester for Electric Cables Laboratory Release Test Apparatus

Detalhes do produto

Nome do produto:

Máquina do teste da liberação do gás ácido do halogênio do cabo

Câmara do controle:

400 (W)*400 (D)*240 (H) milímetro

dispositivo de teste:

1500(L)*450(P)*400(A)mm

Temperatura ambiente:

10°C de funcionamento a 35°C

Temporizador:

Dispositivo da medida do tempo do IEC 60754-1 ou do IEC 60754-2

Peso:

80 kg

Poder:

AC220V 50HZ, 25A

tamanho do barco de combustão:

comprimento 45 ~ 100 mm, largura 12 ~ 30 mm, profundidade 5 ~ 10 mm

Padrões:

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, UL 2556-2007

A faixa de medição de condutividade elétrica:

0,01us/mm ~ 100us/mm.

Destacar:

IEC 60754 halogen gas tester

electric cable release test apparatus

laboratory wire testing equipment

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Preço

$4500

Detalhes da embalagem

caixa de madeira

Tempo de entrega

7 a 10 dias

Termos de pagamento

T/T

PRODUTOS CONEXOS

Teste de alongamento de fios e cabos de cobre, Teste de alongamento de cabos e cabos de material de cobre/máquina de ensaio

Obtenha o melhor preço

Máquina de ensaio de flexão de fio/Testador de flexão de chumbo/Testador de flexão de chumbo

Obtenha o melhor preço

Vídeo

Testador eletrônico de faísca 220V mais recente para fios e cabos, garantia de 1 ano na cobertura de isolamento

Obtenha o melhor preço

Vídeo

Câmara de ensaio de envelhecimento de tipo de ventilação para equipamento de ensaio de fios com enormes janelas de vidro temperado

Obtenha o melhor preço

Contacte-nos

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contacte agora

Descrição do produto

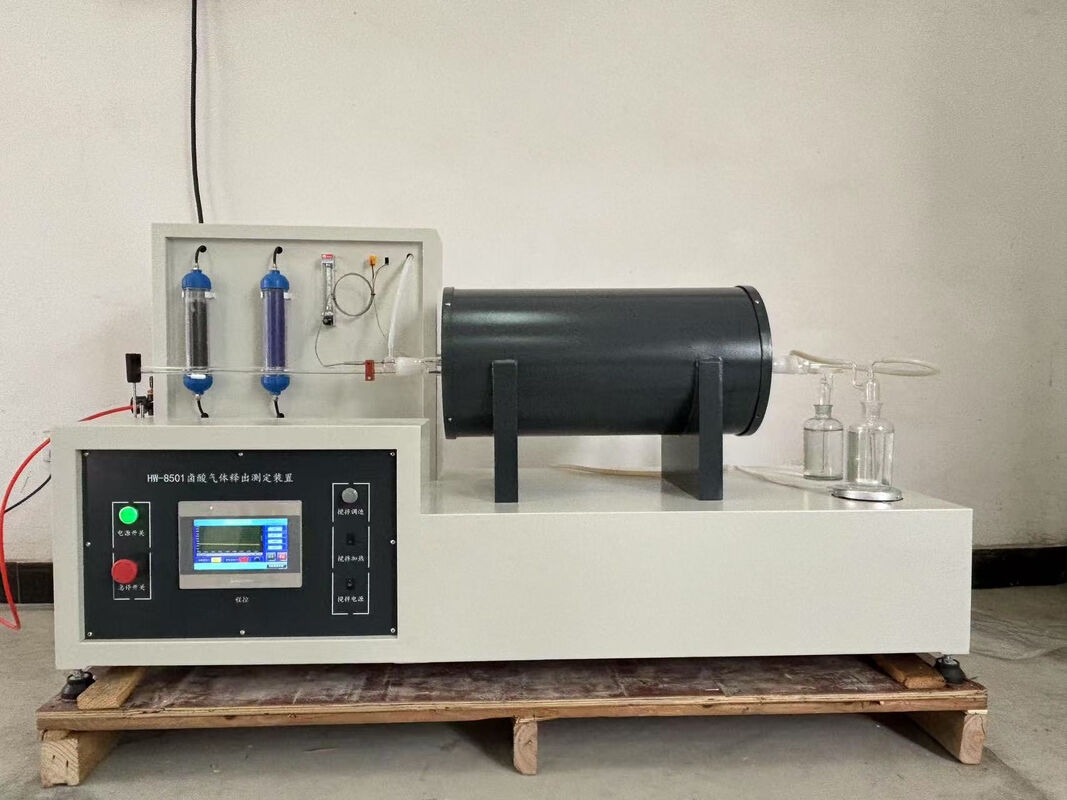

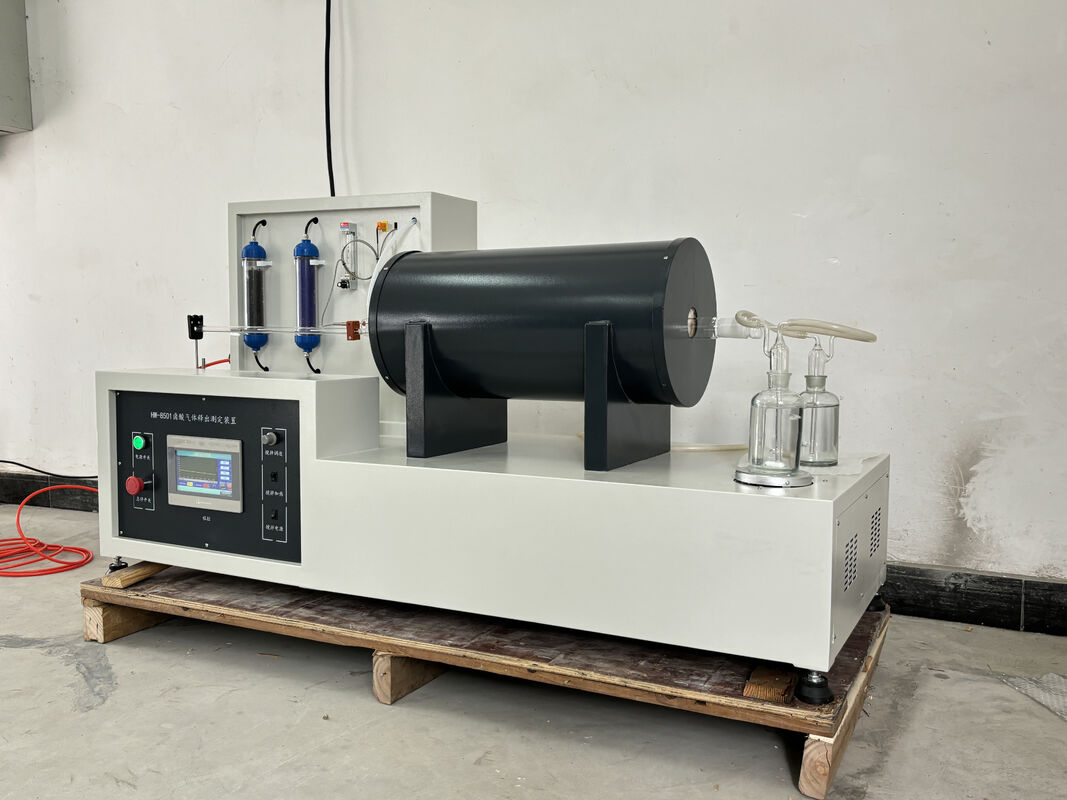

IEC 60754 Halogen Acid Gas Tester for Electric Cables Laboratory Release Test Apparatus

Product Overview

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine is used to test the acidity of gas released during combustion from cable or optical cable components material. The equipment is designed and manufactured based on GB/T 17650 and IEC 60754 standards.

Introduction

The Halogen Acid Gas Tube Furnace processes cable material through a prius tube furnace, then measures the pH value and conductivity of gases generated during combustion. This determines the cable material's acidity, as well as concentration of halogen acid gas volume, pH, conductivity, and other parameters.

Compliance Standards

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007

Key Features

Optimized structure with logical layout for easy operation
All fixtures made of stainless steel
Tube furnace effective length: 500-600mm, inner diameter: 40-60mm with adjustable electric systems
Equipped with imported thermocouple from United States
Combustion boat size: length 45-100mm, width 12-30mm, depth 5-10mm
Electrical conductivity measuring range: 0.01μS/mm - 100μS/mm
Electronic temperature control system with intelligent tube furnace temperature control
Two gas collection bottles included
Sample chamber size: 1 liter
PH value and conductivity detector with electronic display and electrode
Air flow meter with silicon dioxide fire pipeline to prevent gas corrosion
Activated carbon air filter for air purification
Silicone used for drying air source
Pyrex pipeline for easy sample insertion and pipeline protection
Automatic combustion boat moving system for intelligent testing
Mode switching between IEC 60754-1 & IEC 60754-2 test methods
Temperature alarm system to prevent furnace overheating
Timer for IEC 60754-1 or IEC 60754-2 time measurement
Storage drawer for conductivity meters, pH meters, and other components
Temperature indicator showing furnace core temperature
Permanent magnetic stirrer for stirring combustion gases in distilled water
Conductivity meter for measuring combustion gas conductivity

Technical Specifications

Parameter	Specification
Test Device Dimensions	1500(W) × 450(D) × 400(H) mm
Control Chamber Dimensions	400(W) × 400(D) × 240(H) mm
Power Supply	AC220V 50HZ, 25A
Weight	80KG

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Xinhe Industrial Area, Wanjiang District, Dongguan City. YUYANG INDUSTRIAL CO., LIMITED is our private-owned cooperation in HK. Supported by Mechanical CNC and Software R&D core team of YUYANG Manufacturing engineering institute, YUYANG specializes in producing and R&D for flammability testing machines, textile testing machines, toys testing equipment, and footwear testing equipment.

Continuing advanced design technology and concepts, excellent production technology, and outstanding quality management system, YUYANG aims at "manufacture carefully, service by heart" - devoting the best products, counseling and service to schools, manufacturing enterprises, and third-party testing industries.

YUYANG products are distributed to users nationwide. We take pride in having a long list of satisfied customers who consistently rely on us for their various requirements. Most customers are satisfied with our products and services, resulting in repeat orders.

Key Customers Include: SGS (France, Vietnam, China, Korea), Intertek (China), SAT (China), BACL (Shenzhen), NSF (Shanghai), ITS, BV, TUV, etc.

The quality proves value; the effort brings success. What you're concerned about is what we strive for constantly.
