Name: Building Materials Ignitability Flammability Tester for Single Flame Source Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY510
Price: 25,000.00 USD
Availability: InStock

Para casa > produtos > Equipamento de teste da inflamabilidade >

Building Materials Ignitability Flammability Tester for Single Flame Source Test

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Lugar de origem:

China

Marca:

YUYANG

Certificação:

Número do modelo:

YY510

Contacte-nos

Peça umas citações

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Detalhes do produto

Velocidade do ar de combustão:

0.7m/s somente na condição do queimador que queima-se e da capa do esboço aberta

Fonte de energia:

AC220V±10%，50Hz

Forno de túnel de teste:

3. Comprimento 7,62m, seção transversal de extremidade aberta 0.45m * 0,3m, temperatura máxima de ti

Ângulo do queimador:

45 °

Fonte de gás:

> 95% de gás propano; （Usuário deve fornecer para si）

Pressão do gás:

10kpa~50kpa

Destacar:

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Termos de pagamento e envio

Quantidade de ordem mínima

SET/Sets

Preço

pending

Tempo de entrega

Termos de pagamento

L/c, t/t

Habilidade da fonte

PRODUTOS CONEXOS

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Obtenha o melhor preço

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Obtenha o melhor preço

YY-121 Building Materials Difficult Flammability Test Equipment

Obtenha o melhor preço

Vídeo

Cabine de segurança biológica de classe II A2 com profundidade de 780 mm

Obtenha o melhor preço

Contacte-nos

86-769-26622869

Contacte agora

Descrição do produto

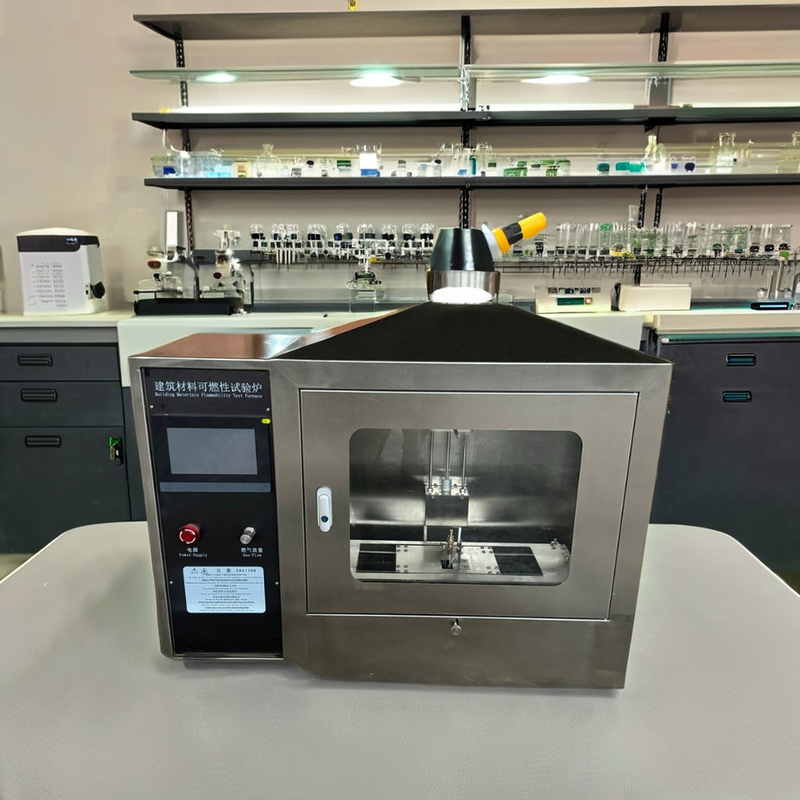

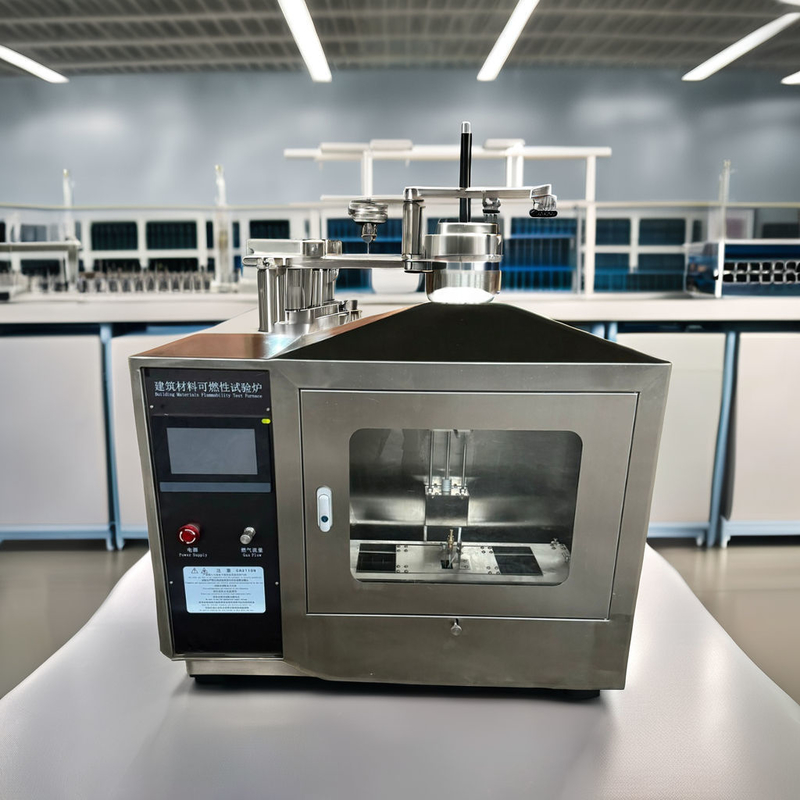

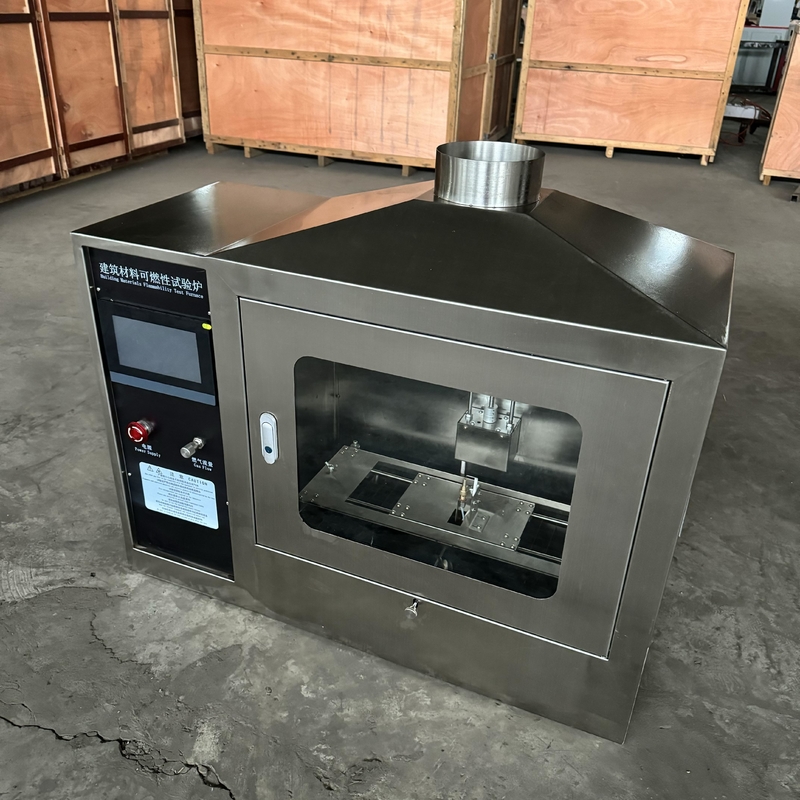

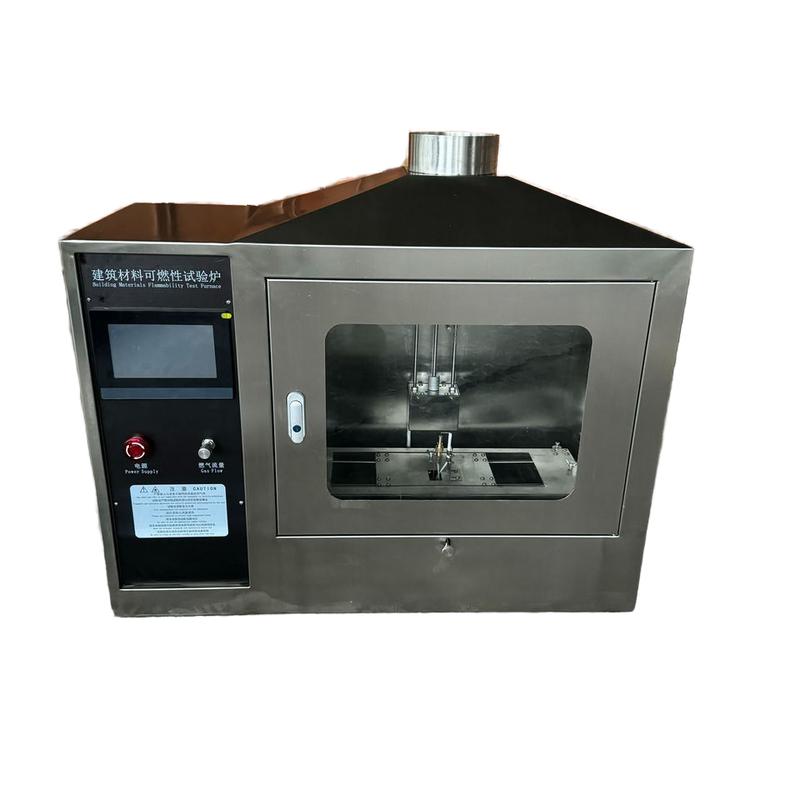

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250) mm long by (90) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

Specifications

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz
Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet
Gas source: >95% propane gas (user should provide for themselves)
Gas pressure: 10kpa~50kpa
Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy: ≤1s/h
Anemometer: hot wire, accuracy ±0.1m/s, for measuring the airflow velocity in the upper outlet of the combustion chamber
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side
Whole set: control device, burning chamber, burner, magnetic valve, flame lighter, signal control line and specimen holder
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time

Standards

GB/T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2010-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test

Specimen Holder

Packing List

NO.	Name	Quantity	Packing Mode
1	Collector	1
2	Specimen holder	2
3	Template	2
4	Burner spacer	2	5mm-16mm
5	Flame-height measuring device	1
6	Igniter	1
7	Aluminum foil paper	1
8	Filter Paper	1
9	Anemometer	1
10	Instruction Manual	1
11	Quality Assurance	1
12	Product Certificate	1
13	Warranty Card	1
