Name: 5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: RY276
Price: 2,502.00 USD
Availability: InStock

Para casa > produtos > equipamento de teste de matéria têxtil >

5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

5kn tensile testing machine for rubber

universal tensile tester for plastics

high stroke textile testing equipment

Lugar de origem:

China

Marca:

YUYANG

Certificação:

Número do modelo:

RY276

Contacte-nos

Peça umas citações

5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

Detalhes do produto

Capacidade:

500 kg ((5kN)

Medição de força:

Dentro de ±0,5% do valor exibido

Método de exibição:

Tela de toque

Unidade:

Kg,lb,n

Frequência de preparação de amostras dos dados:

200times/sec

Largura eficaz do teste:

150 mm

Alongamento eficaz de:

1200 mm

Destacar:

5kn tensile testing machine for rubber

universal tensile tester for plastics

high stroke textile testing equipment

Termos de pagamento e envio

Quantidade de ordem mínima

Ajuste/grupo

Preço

pending

Tempo de entrega

Termos de pagamento

L/c, t/t

PRODUTOS CONEXOS

Vídeo

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Obtenha o melhor preço

Vídeo

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Obtenha o melhor preço

Vídeo

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Obtenha o melhor preço

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Obtenha o melhor preço

Contacte-nos

86-769-26622869

Contacte agora

Descrição do produto

5kN High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

Product Specifications

Attribute	Value
Capacity	500kg(5kN)
Force measurement	Within ±0.5% of the displayed value
Display method	Touch Screen
Unit	Kg, lb, N
Data sampling frequency	200times/sec
Effective test width	150mm
Effective stretching	1200mm

Product Description

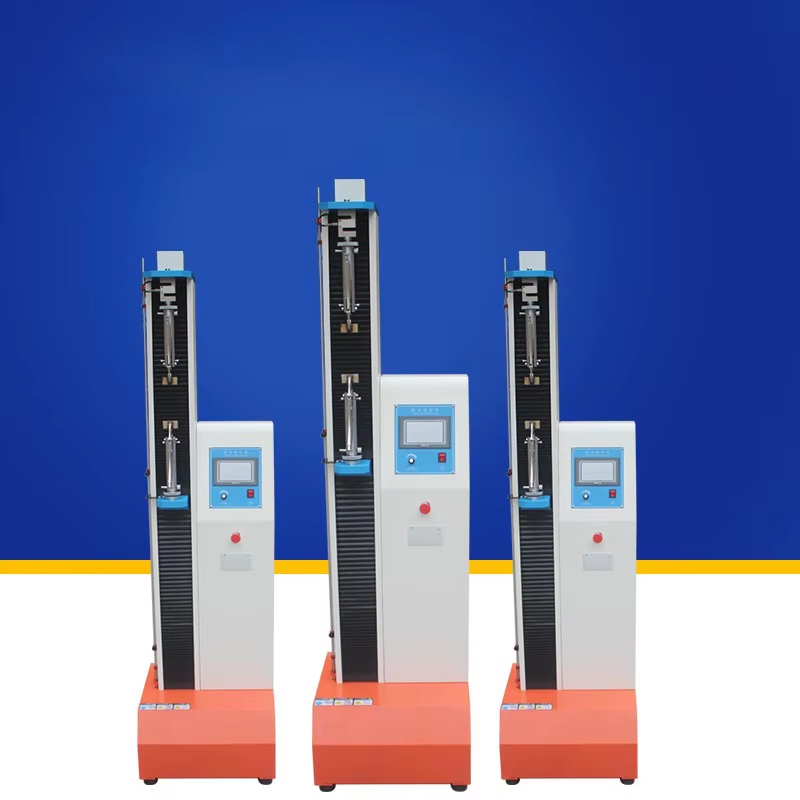

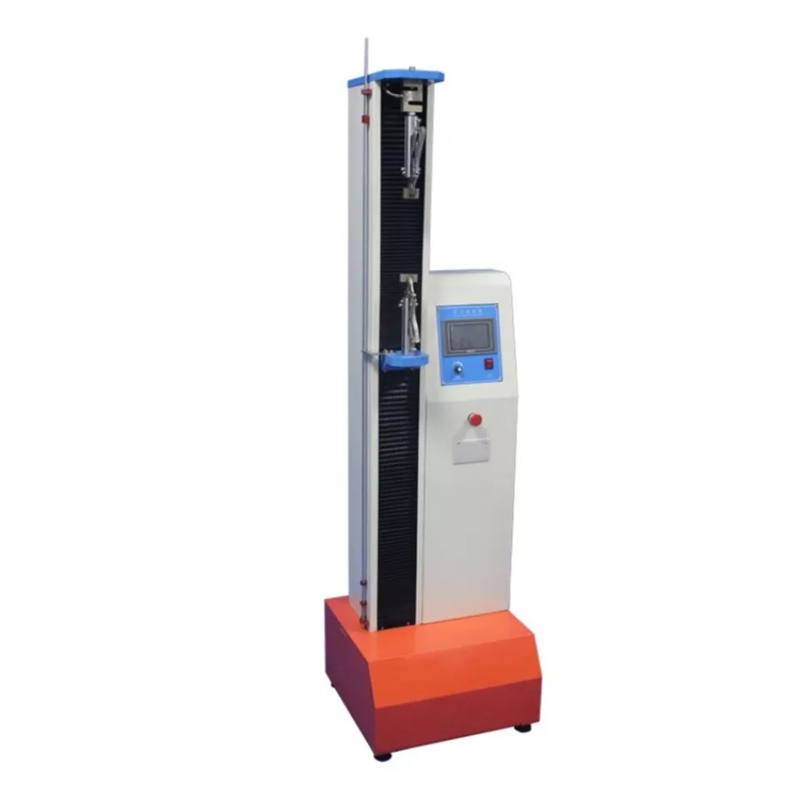

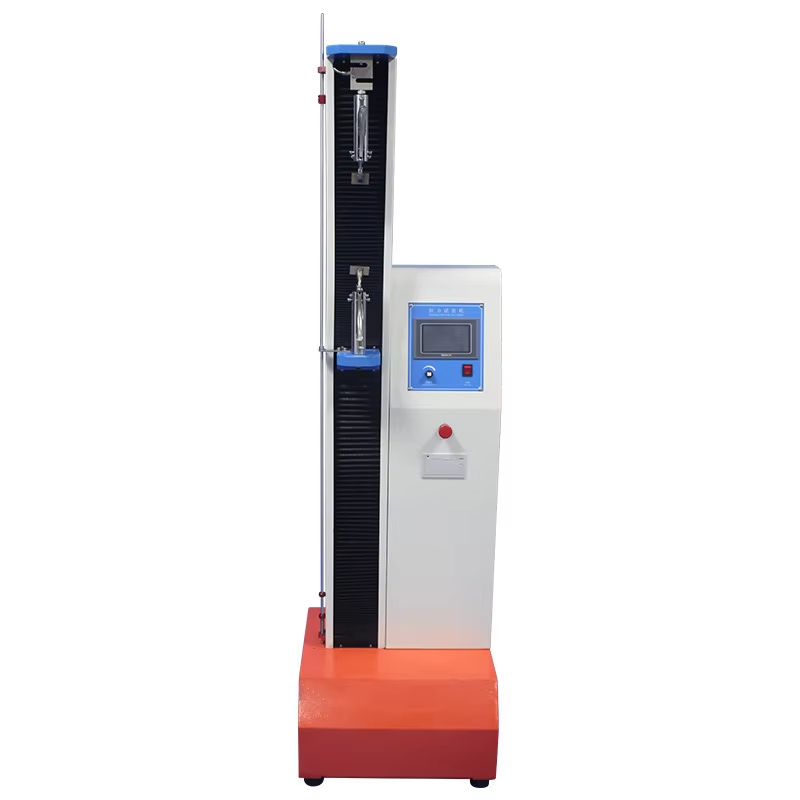

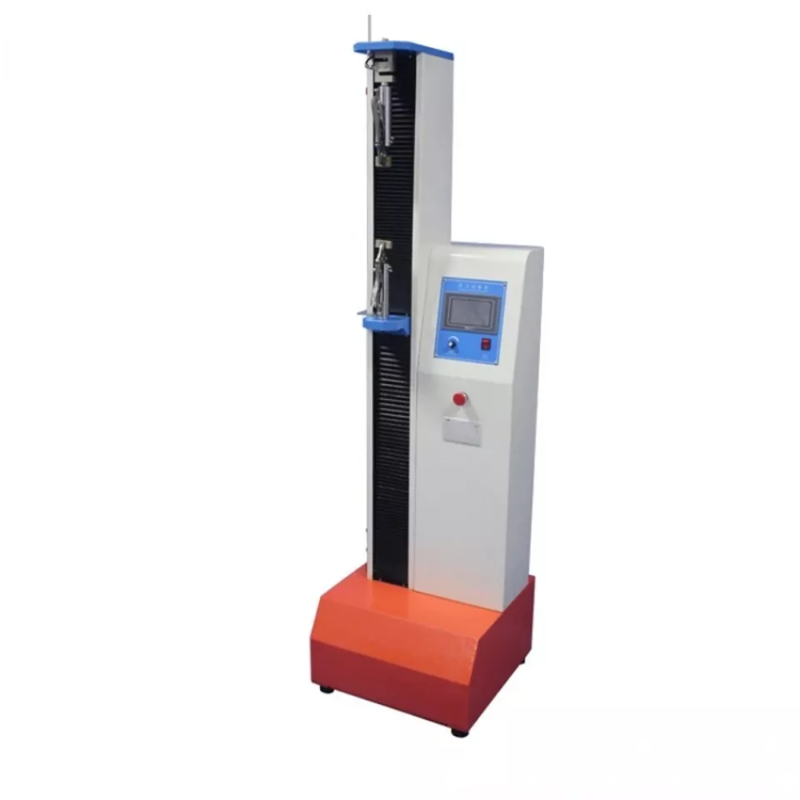

5kN Single Column Tensile Testing Machine

Description of Electronic Tensile Testing Machine

Computer display electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling, tearing and other mechanical properties.

This type is mainly for the tensile strength testing of insulator.

Features

A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose
The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions
Tensile strength function, stable loading, good performance at low speed, no gap, high transmission efficiency, low noise, stable transmission

Testing Standard: GB/T16491-1996

Technical Parameters

Capacity	500kg(5kN)
Force measurement accuracy	Within ±0.5% of the displayed value
Display method	Touch Screen
Unit	Kg, lb, N
Data sampling frequency	200times/sec
Test machine resolution	Maximum load of 1/±25,000 yards, inside and outside without splitting, and constant resolution throughout
Load sensors	Basic configuration: pull and pressure sensors (maximum load)
Effective test width	150mm
Effective stretching of space	1200mm
Testing speed range	1-100mm/min stepless speed control and 5-speed fixed (special test speed can be customized according to customer requirements)
Displacement measurement accuracy	Within ±0.5% of the displayed value
Breakpoint ratio setting	0～99%, Users can set the appropriate breakage stop time according to different materials
Test bench safety device	Up and down travel limiter
Overload protection	Automatically protected when the maximum load is exceeded by 10%
Clamp	One set
Dimension	550×400×1820mm
Main machine weight	About 100 Kgs
Power supply	220V/50Hz
Compatible Software	Can provided according customers payment
Installation Instruction	Videos provided
Connect way	USB data cable connection
